Medium And High Precision Fiber Optic Gyroscope Wide Measuring Range

Name: Medium And High Precision Fiber Optic Gyroscope Wide Measuring Range
Brand: thundsea
Price: 1 USD

Brand Name : thundsea

Model Number : F98H type

Certification : CCS

Place of Origin : China

MOQ : one set

Supply Ability : 30 set per month

Delivery Time : 15days

Packaging Details : carton box

Zero stability °/hr(1σ,10s) : ≤0.015

Zero stability °/hr(1σ,100s) : ≤0.0065

Stability time (s) : ＜10

Room temp zero drift repeatability ° /hr(1σ) : ≤0.015

Full temp zero drift repeatability (°/hr) : ≤0.05

Scale factor non-linearity ppm : ≤10

Scale factor repeatability ppm : ≤20

Contact Now

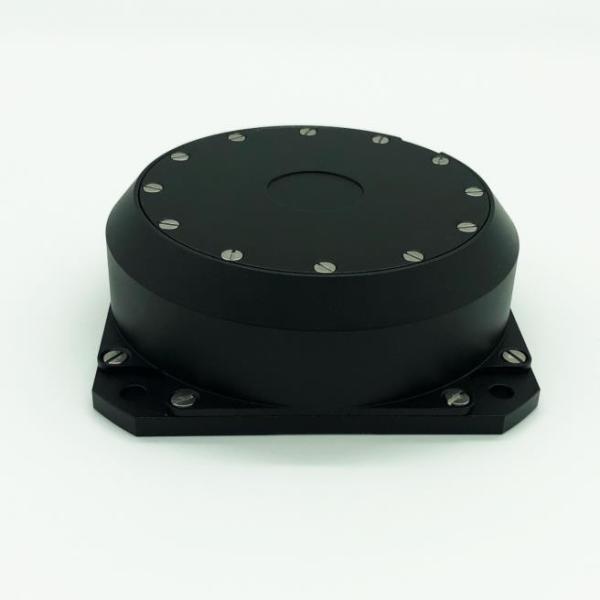

F98H type Medium and high precision fiber optic gyroscope

1 Introduction

Fiber optic gyroscope (FOG) as a new type of all-solid-state gyroscope, has the advantages of fast start-up, wide measuring range and high reliability. F98H single-axis FOG can be used in the application requirements of inertial navigation systems such as land-based positioning and orientation, vehicle-mounted north finder, airborne heading and marine compass.

1.1 Applicable Scope

This manual is only applicable to F98H type products, including performance specifications, technical conditions, external dimensions and installation and operation.The technical conditions include the environmental range, electrical performance, and physical characteristics of the product.

1.2 Main parameters

1.2.1 fiber optic gyroscope instrument main performance indicators.

Table 1 Main performance index

	Type A	B type	Type C	Remarks
Zero stability °/hr(1σ,10s)	≤0.015	≤0.015	≤0.010
Zero stability °/hr(1σ,100s)	≤0.0065	≤0.0055	≤0.0045
Stability time (s)	＜10	＜10	＜10
Room temp zero drift repeatability ° /hr(1σ)	≤0.015	≤0.015	≤0.010
Full temp zero drift repeatability (°/hr)	≤0.05	≤0.05	≤0.030
Random walk coefficient °/	≤0.002	≤0.001	≤0.001
Scale factor non-linearity ppm	≤10	≤10	≤10
Scale factor repeatability ppm	≤20	≤10	≤10
Full temp scale factor repeatability	≤200	≤100	≤50
dynamic range	±500°/s
Magnetic field sensitivity	≤0.020°/hr/Gs
Operating temperature	-40℃～+65℃
Storage temperature	-50℃～+70℃
Vibration condition	4.2g,20Hz～2000Hz
